3A / ISO SS316 Pneumatic Sanitary Diaphragm Valve for fliud regulation

Name: 3A ISO SS316 Pneumatic Sanitary Diaphragm Valve for fliud regulation
Brand: DONJOY
Price: 1 USD

China 3A / ISO SS316 Pneumatic Sanitary Diaphragm Valve for fliud regulation factory

Brand Name : DONJOY

Model Number : NO.

Certification : CE,3A,FDA

Place of Origin : China

MOQ : Negotiation

Price : negotiation

Payment Terms : T/T, LC, Credit Card

Packaging Details : carton box

Product Name : Pneumatic radial diaphramg valve with clamp

Materials : SS316L / 1.4404

Size : 3/4'' - 2.5'', DN20 - DN65

Operation : Plastic actuator

Connection : welding

Gasket : EPDM + PTFE

Conveying direction : 3 outlet

Size of clamp : According to working situation

Contact Now

3A / ISO SS316 Pneumatic Diaphragm Valve for fliud regulation

Specifications

Product Name:	Pneumatic Radial Diaphragm Valve for phamacy hygienic process
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	6 Bar
Max.Working Temperature:	120 degree C
Availably size:	3/4''-2.5'', DN20-DN65
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Position of pneumatic:	On 2 ends
Indicator light:	Be installed with

Description

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

Max.Working Temperature

Max temperature : 120 ℃

Available connection

Clamped / welded / threaded / special connection

Seal ring material
Single sillcone gasket
Adhesive PTFE + EPDM
Two pieces PTFE + EPDM

Packaging
Bubble pack for each valve.

Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

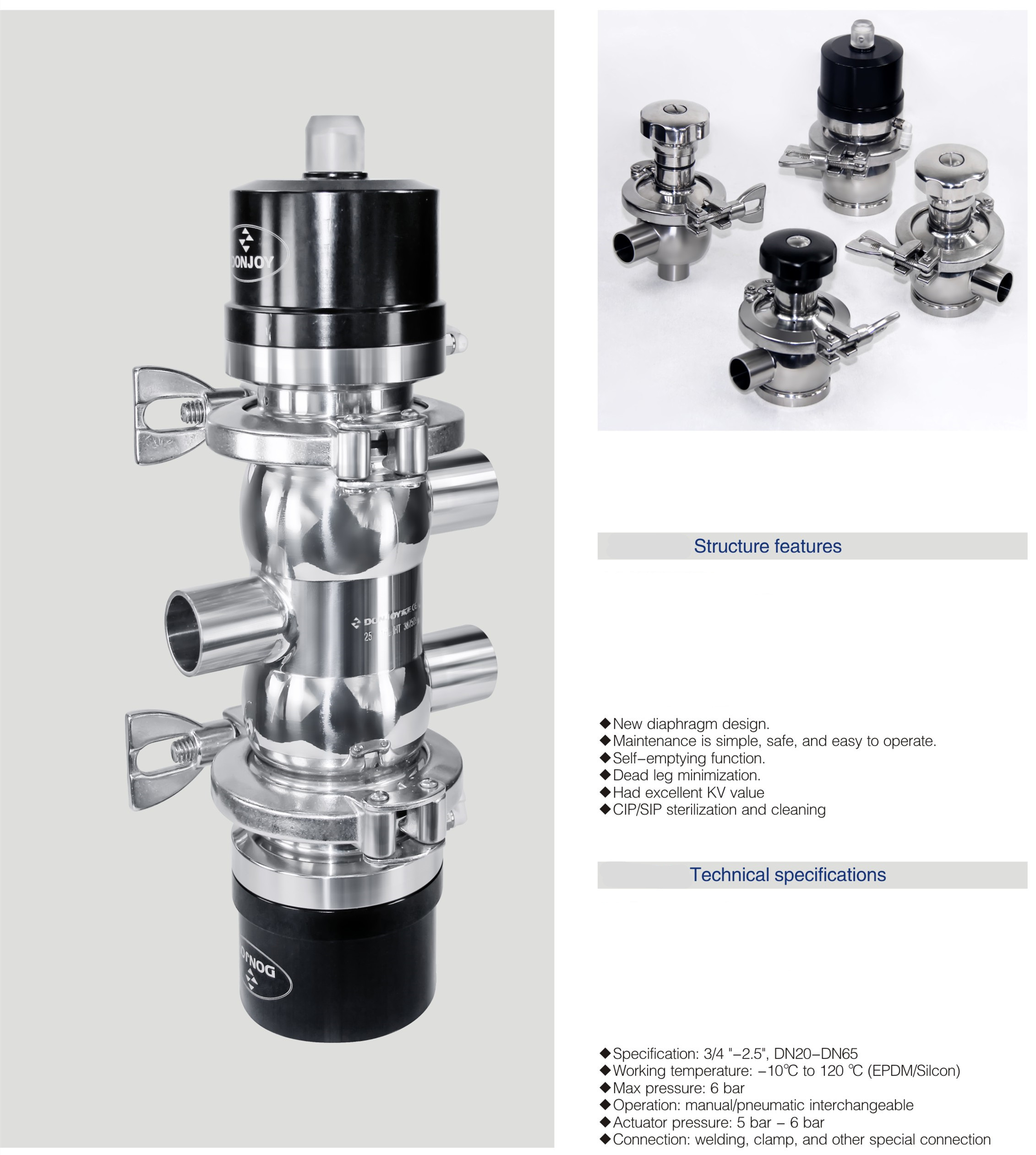

Product display
3A / ISO SS316 Pneumatic Sanitary Diaphragm Valve for fliud regulation
