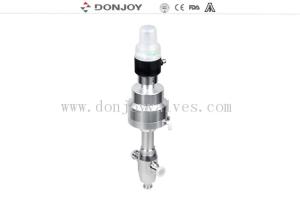

Stainless steel Pneumatic 3way Shut-off Globe Valve with DC24V F top
specifications:
| Product Name: | Shut off globe valve |
| Valve Body Material: | CF8M/316L |
| Seal Material: | EPDM |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN15-DN65 or 0.5" - 2.5" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Pneumatic ,Manual, Control Head |
| Certificate: | FDA,CE,ISO |
Operation Options for Globe Valve
1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Operationg Principles
1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Applications:
The three way globe valve is mainly used in flow regulation control and reversing valves. This valve is in contact with the medium only in stainless steel and PTFE, with a maximum temperature of 180 ° C and a pressure resistance of up to 16 bar. It can also be used in a vacuum environment. The valve body is designed according to the dead angle, the surface roughness can reach Ra0.4μm, and the valve core seal adopts the embedded design, so it can be used in a wide range of industries, such as pharmaceutical, food and beverage, brewing, chemical and other industrial fields.
Drawing
Curve
